The editor offers limitless customization. Users can import or build their own object libraries, define custom shapes and symbols, and assign tags or parameters that connect directly to real equipment or data points. This freedom allows the creation of diagrams that perfectly reflect the logic and structure of any enterprise, whether it’s a single production line or an entire multi-site operation.

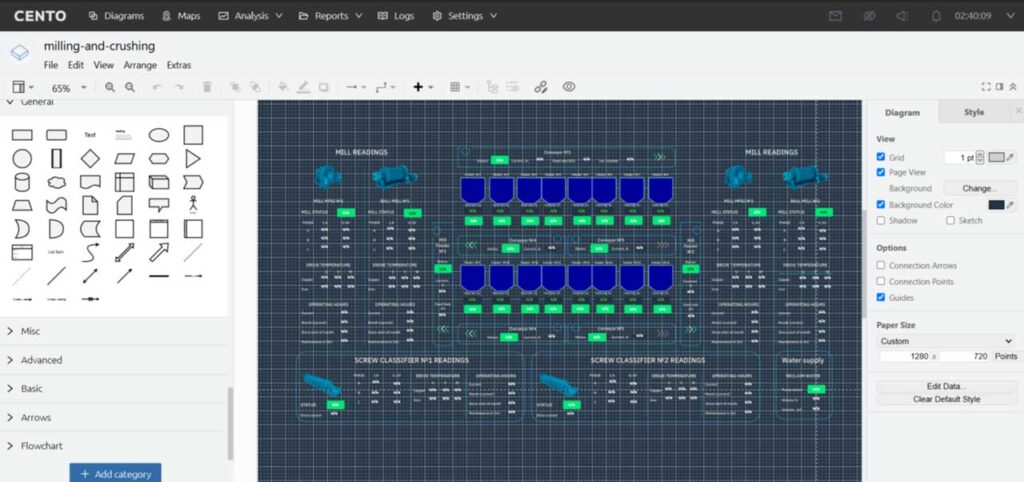

The Properties panel provides detailed styling options for grids, backgrounds, colors, fonts, and connection behaviors, so every diagram looks professional and fits seamlessly into company design standards. The Categories and Toolbar panels keep essential tools and components within easy reach, making the workflow fast and efficient.
At its core, the Diagram Editor is not just a drawing tool, it’s a visual engineering workspace. It brings clarity to complex systems, enables real-time interaction with live data, and adapts to any process or industry. Whether you’re mapping an energy network, visualizing a control system, or building an analytical dashboard, CENTO gives you the freedom to design exactly what you need, your way.
